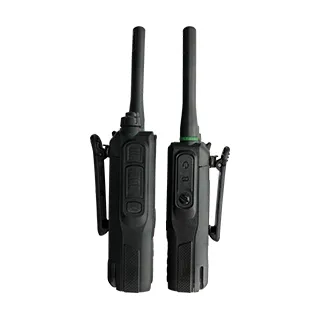

Hybrid Network Architecture Walkie-Talkie – Reliable Communication Anytime, Anywhere

1. Product Overview

The Hybrid Network Architecture Walkie-Talkie combines the strengths of traditional two-way radios and modern IP-based communication systems to deliver a powerful, flexible, and reliable communication platform.

Unlike standard analog or digital radios that rely solely on either direct mode (DMO) or repeater-based infrastructure, this advanced model seamlessly integrates multiple communication layers — local peer-to-peer, repeater-assisted, and internet-based channels — forming a hybrid communication network that adapts intelligently to any environment.

It is designed for emergency response, industrial production, field operations, logistics, and defense communications, providing continuous connectivity even when conventional networks fail.

With automatic mode switching, intelligent routing, and robust encryption, the Hybrid Network Architecture Walkie-Talkie ensures secure, long-distance, and uninterrupted communication, making it an indispensable tool for professional teams worldwide.

2. Technical Parameters

3. Key Features

3.1 Hybrid Communication Modes

The walkie-talkie intelligently integrates three transmission modes:

• Peer-to-Peer (DMO) – Direct communication between radios without infrastructure.

• Repeater Mode – Extended coverage via local base stations.

• Internet/IP Mode – Long-distance communication using 3G/4G or Wi-Fi networks.

This hybrid structure ensures continuous communication under any condition — whether in the field, urban centers, or remote zones.

3.2 Automatic Network Switching

The system detects signal strength and automatically switches between communication modes to maintain stable connections.

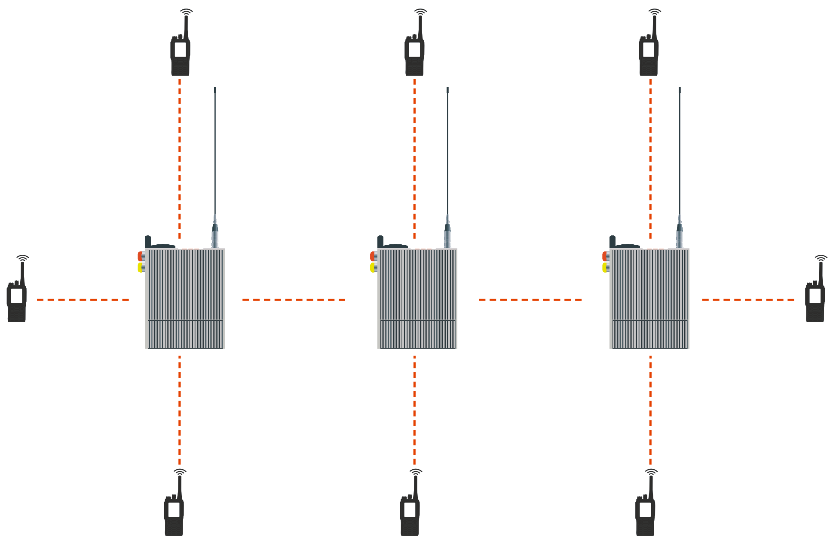

3.3 Multi-Hop Relay Function

In DMO, each device can serve as a relay node, forming a self-healing mesh that extends range and enhances reliability.

3.4 Secure and Encrypted Transmission

With AES 256-bit encryption, all voice and data communication are fully protected, preventing eavesdropping or interference.

3.5 Noise Suppression and Clear Audio

Equipped with DSP noise reduction, the radio ensures high-definition audio even in noisy environments such as factories or disaster zones.

3.6 Rugged and Durable Design

Constructed from reinforced polycarbonate housing, the radio is IP67-rated, resistant to dust, water, and mechanical shock.

3.7 GPS and Data Transmission

Supports location sharing, status signaling, and text message transfer, improving coordination efficiency among teams.

4. Application Scenarios

4.1 Emergency Rescue and Disaster Relief

During floods, earthquakes, or fires, cellular networks may fail. The hybrid architecture ensures instant connectivity among responders via direct and relay communication modes, while maintaining long-distance coordination through IP links.

4.2 Industrial and Mining Operations

In industrial parks and underground mines, radio signals are easily blocked. With multi-hop and repeater integration, this device guarantees seamless voice coverage and enhances operational safety.

4.3 Security and Law Enforcement

Police, military, and security agencies use the Hybrid Network Architecture Walkie-Talkie for encrypted, interference-free communication, ideal for tactical missions.

4.4 Logistics and Fleet Management

In logistics hubs and transportation fleets, real-time coordination is essential. This system connects vehicles and control centers through hybrid cellular and radio communication, ensuring continuous contact.

4.5 Construction and Engineering

Large-scale construction sites often lack communication infrastructure. The hybrid network mode enables portable deployment, team coordination, and site-wide coverage without relying on mobile networks.

4.6 Outdoor Expeditions and Events

For mountaineering, adventure racing, and event management, the system creates an autonomous communication network, ensuring safety in off-grid locations.

5. Operating Instructions

5.1 Initial Setup

1. Install Antenna – Secure the provided high-gain antenna onto the connector.

2. Insert Battery – Slide and lock the Li-ion battery firmly into the compartment.

3. Power On – Hold the power button for 2–3 seconds.

4. Select Mode – Choose from DMO, Repeater, or IP mode via the settings menu.

5. Adjust Channel & Volume – Rotate knobs or use digital controls for operation.

5.2 Basic Communication

• Push-to-Talk (PTT): Press and hold to transmit, release to receive.

• Group Calls: Communicate with all members sharing the same group ID.

• Private Calls: Select specific IDs for one-on-one conversations.

• Emergency Alert: Hold the SOS button to trigger immediate alert transmission.

5.3 IP/Cellular Configuration

For IP mode:

1. Insert SIM card or connect to Wi-Fi.

2. Configure server or gateway address.

3. Register radio ID and test connectivity.

4. Once connected, global communication is available without range limitation.

5.4 Repeater Mode Setup

When a repeater station is available:

1. Choose “Repeater Mode” in the menu.

2. Input frequency pair and color code.

3. Save settings and restart device to activate coverage extension.

5.5 GPS and Data Usage

Enable GPS via the “Location” menu.

• View team members’ coordinates on the display.

• Send text updates or quick status reports.

• Use the tracking software (optional PC/mobile app) for route replay.

6. Maintenance and Care

Storage Conditions

• Store between 10–35°C, humidity 40–60% RH.

• Avoid magnetic fields or direct sunlight.

• Remove battery for long-term storage.

Safety Warnings

• Do not expose to open flames or extreme heat.

• Use only certified accessories and chargers.

• Avoid operation near explosive materials.

• Keep a minimum 2.5 cm distance from antenna when transmitting.

7. Common Questions (FAQ)

Q1: What is a Hybrid Network Architecture Walkie-Talkie?

It is a radio system combining local radio transmission (DMO) and internet/IP communication, ensuring flexibility and reliability in all conditions.

Q2: Does it work without a network connection?

Yes. In direct mode, it functions like a standard two-way radio without any infrastructure.

Q3: How far can it communicate?

Local range is typically 5–10 km, expandable to unlimited distance in IP or repeater modes.

Q4: Is communication encrypted?

Yes, it supports AES 256-bit digital encryption, ensuring private and secure conversations.

Q5: Can different brands of radios connect?

If they follow compatible DMR Tier II standards, interoperability is possible.

Q6: How many users can connect in one network?

Up to 128 radios per mesh or network group, depending on configuration.

Q7: What happens if a node is lost?

The hybrid network automatically rebuilds communication routes to maintain continuous operation.

Q8: Is the radio waterproof?

Yes, rated IP67, it resists dust, rain, and short-term water immersion.

Q9: Can I program the channels myself?

Yes. Using the included programming cable and software, you can customize frequencies and group settings.

Q10: What certifications does it have?

All units are tested and certified under CE, FCC, and RoHS compliance for global trade and operation.

8. Product Advantages

9. Quality Control and Certification

Every Hybrid Network Architecture Walkie-Talkie undergoes a strict multi-stage quality inspection:

1. Incoming Material Inspection (IQC) – Verification of electronic components and housing materials.

2. In-Process Quality Control (IPQC) – Signal calibration, soldering checks, and assembly precision.

3. Final Quality Control (FQC) – Testing of audio clarity, RF performance, and encryption function.

4. Aging Test – Each unit runs 48 hours continuously under variable temperature to ensure durability.

All production follows ISO9001 quality management system and RoHS environmental standards.

10. Conclusion

The Hybrid Network Architecture Walkie-Talkie redefines professional communication by integrating multiple transmission technologies into one unified system. Its hybrid design ensures uninterrupted connectivity whether in remote mountains, industrial zones, or across continents.

With its robust construction, secure encryption, intelligent routing, and multi-mode operation, this radio delivers superior communication efficiency and reliability for military, industrial, emergency, and commercial sectors.

As a future-proof solution, it not only bridges traditional and digital communication systems but also sets a new standard for flexible, resilient, and intelligent voice networking.

Walkie-talkie Features and Specifications

The walkie-talkie is a reliable two-way communication device widely used in personal, commercial, and industrial applications. With advanced design and user-friendly functions, it allows instant voice transmission without the need for a mobile network.

Key Features

• Instant Communication: Press-to-talk (PTT) functionality ensures fast voice transmission.

• Durable Design: Built to withstand outdoor and industrial environments.

• Long Battery Life: Optimized for extended operation in the field.

• Compact and Portable: Lightweight design for easy carrying.

• Clear Audio: Noise reduction technology provides stable sound quality.

Technical Specifications

Conclusion

With stable performance and reliable specifications, the walkie-talkie is an essential tool for users who require efficient and uninterrupted communication in different environments.

Handheld Internet Radio Applications and Benefits

The Handheld Internet Radio is a versatile device that combines modern internet connectivity with the portability of a traditional radio. By connecting through Wi-Fi or 4G/5G networks, it enables users to access thousands of global radio stations, podcasts, and streaming services. Its portability, durability, and smart features make it valuable for both personal and professional use.

Applications

1. Personal Entertainment
   The handheld internet radio allows users to enjoy music, news, sports, and cultural programs worldwide. It is perfect for daily listening, travel, and outdoor activities.

2. Education and Training
   Schools, universities, and language learners can use the device to access international educational content, podcasts, and live broadcasts for study and cultural exchange.

3. Business and Enterprise
   Companies in logistics, construction, and event management rely on the handheld internet radio for fast information sharing and reliable communication among teams.

4. Emergency Response
   In disaster recovery and rescue operations, the radio provides a stable communication channel when conventional infrastructure is unavailable.

5. Tourism and Outdoor Activities
   Lightweight and portable, it is an excellent companion for hiking, camping, and travel, ensuring entertainment and connectivity in remote locations.

Benefits

• Global Access: No frequency limits; tune in to stations worldwide.

• Portability: Compact and easy to carry for daily use or fieldwork.

• Clear Audio Quality: Digital streaming ensures stable, interference-free sound.

• Smart Features: Supports Bluetooth, apps, and GPS for multifunctional use.

• Reliable Performance: Long battery life and durable design for various environments.

Conclusion

The Handheld Internet Radio offers more than entertainment. Its wide applications in education, business, emergency response, and tourism highlight its value as a reliable, portable, and future-ready device. With global connectivity and practical benefits, it is the ideal choice for modern communication and information access.
